제품소개 > 용접기

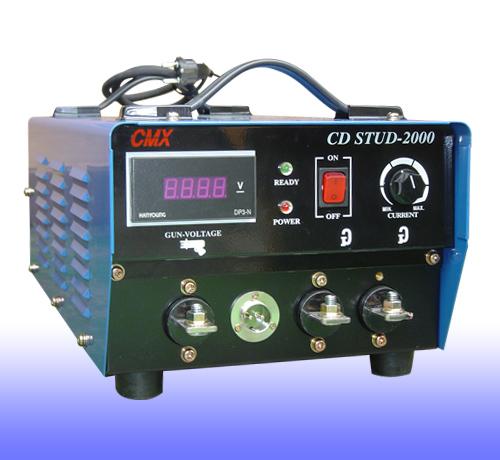

CD-2000
ㆍInput vol : 220V/1Φ
ㆍCondensor : 176,000㎌
ㆍCharge time : max. 2~3sec
ㆍWeld dia : 2-10mm
ㆍDuty cycle : 28 stud/minute
ㆍSize : 310 x 220 x 520
ㆍCooling : Built-in Fan

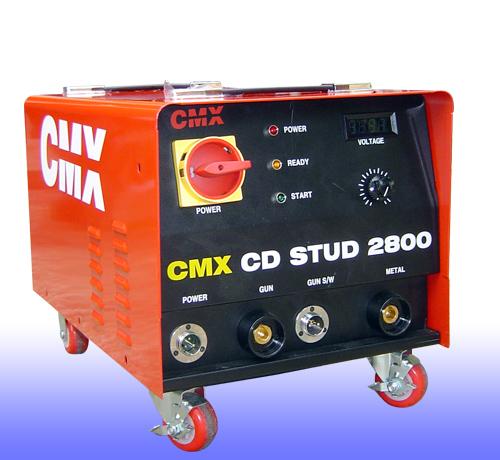

CD-2800
ㆍInput vol : 220V/1Φ
ㆍCondensor Cap : 288,000㎌
ㆍCharge time : max. 1 sec (순간층방전방식)
ㆍWeld dia : 2-12mm
ㆍDuty cycle : 50 stud/minute
ㆍSize : 550 x 370 x 325
ㆍWeight : 30 kg
ㆍCooling : Built-in Fan

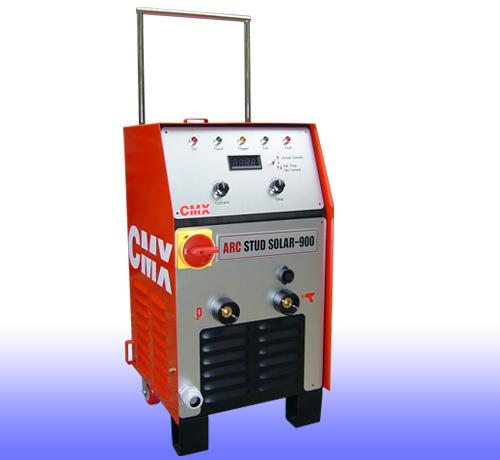

ARC SOLAR-900
ㆍInput vol : 220/380/440/3Φ/50~60Hz
ㆍWeld dia : 3-12mm D/A , 3~8mm S/C
ㆍWeld sys : Display Type
ㆍWeld time : 0.1~1sec
ㆍSize : 330 x 250 x 630
ㆍCooling : Built-in Fan
ㆍWeight : 50 kg
ㆍBase : 2-Casters

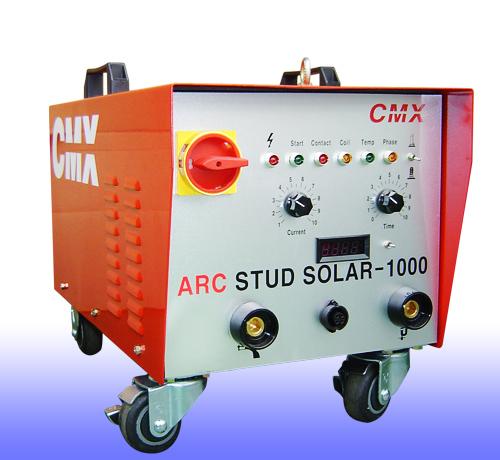

ARC SOLAR-1000
ㆍInput vol : 220/380/440/3Φ/50~60Hz
ㆍWeld dia : 3-12mm D/A , 3~8mm S/C
ㆍWeld sys : Display Type
ㆍWeld time : 0.1~1sec
ㆍSize : 320 x 270 x 550
ㆍCooling : Built-in Fan
ㆍWeight : 60 kg
ㆍBase : 4-Casters

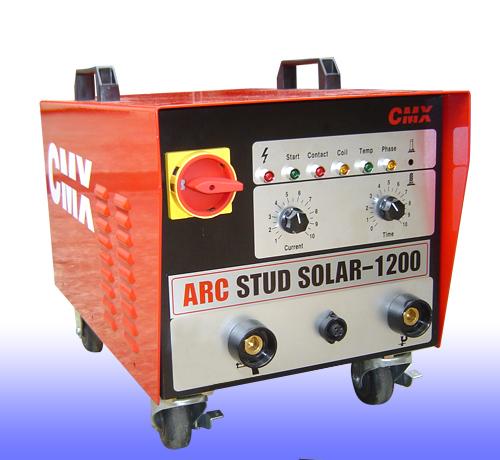

ARC SOLAR-1200
ㆍInput vol : 220/380/440/3Φ/50~60Hz
ㆍWeld dia : 3-14mm D/A , 3~8mm S/C
ㆍWeld sys : Display Type
ㆍWeld time : 0.1~1sec
ㆍSize : 325 x 275 x 550
ㆍCooling : Built-in Fan
ㆍWeight : 70kg
ㆍBase : 4-Casters

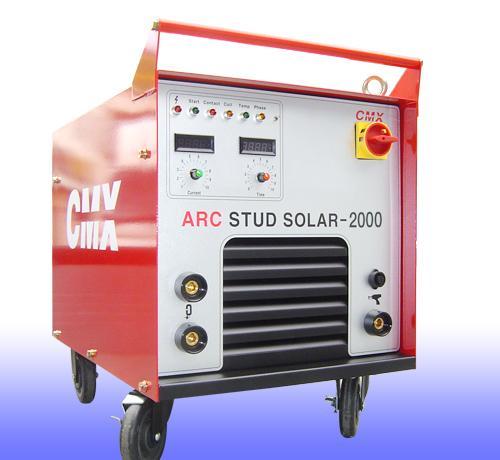

ARC SOLAR-2000
ㆍInput vol : 220/380/440/3Φ/50~60Hz
ㆍWeld dia : 3-18mm D/A , 3~8mm S/C
ㆍWeld sys : Display Type
ㆍWeld time : 0.1~1.2sec
ㆍSize : 520 x 750 x 770
ㆍCooling : Built-in Fan
ㆍWeight : 220kg
ㆍBase : 4-Casters

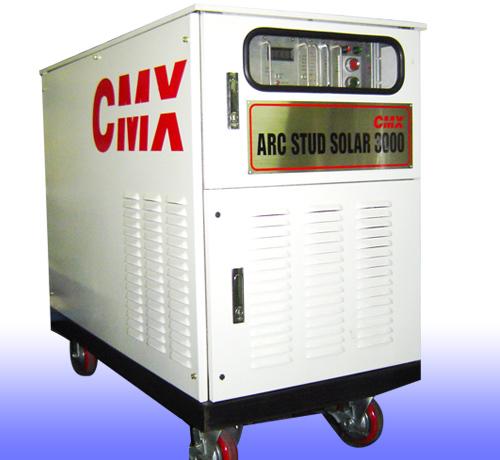

ARC SOLAR-3000
ㆍInput vol : 220/380/440/3Φ/50~60Hz
ㆍWeld dia : 3-25mm D/A
ㆍWeld sys : Display Type
ㆍWeld time : 0.1~1.4sec
ㆍSize : 1020 x 700 x 1040
ㆍCooling : Built-in Fan
ㆍWeight : 450kg
ㆍBase : 4-Casters
ㆍDuty cycle : 30%
ARC Midwest-3000
ㆍInput vol : 220/380/440/3Φ/50~60Hz
ㆍWeld dia : 3-25mm D/A
ㆍWeld sys : Display Type
ㆍWeld time : 0.1~1.4sec
ㆍSize : 700 x 780 x 890
ㆍCooling : Built-in Fan
ㆍWeight : 400kg
ㆍDuty cycle : 15%

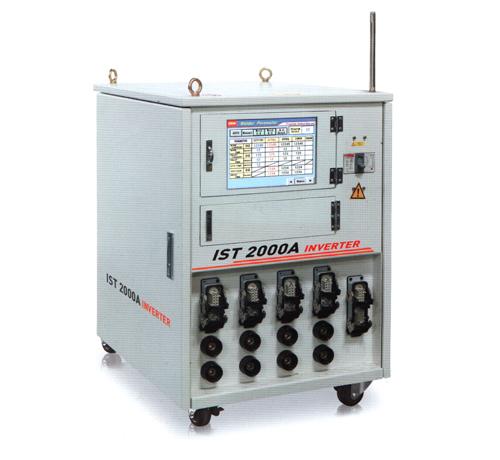

ARC IST 2000A
Rated Input Volt : AC 440V, 3Ø(170KVA)
Rated Frequency : 50/60Hz
Main Current 0~2,000[Ampare]
